Cables and Construction Products Regulations - EU CPR 305/11
In the last two decades, the regulation is a topic in which the entire world of products is involved due to their importance in case of fire.
The CPR Regulation covers all buildings to be permanently installed in buildings and other civil engineering works, urban, urban, etc.). For cables, the Commission has decided to think, within the characteristics considered relevant for the purpose of building safety.
All cables permanently installed in buildings, are able to carry data or fiber optic, be classified according to the specifications of the installation environment.
The cables are classified in 7 fire reaction classes Aca, B1ca, B2ca, Cca, Dca, Eca, Fca identified by the "ca" subscript (cable) according to their decreasing performance.
In addition to this main standard, the European Authorities have also regulated the use of the following additional parameters:
a = acidity that has the danger of fumes for people and the corrosivity for things. Ranges from a1 to a3
s = smoke opacity. Ranges from s1 to s3
d = dripping of incandescent particles that can propagate fire. Ranges from d0 to d2.
Fire resistant cables are excluded at the limit of fire safety.
FS-17
FG16R16
FG16OR16
FS18OR18
FS-17
Nominal voltage
Uo / U 450/750 Volt
Norms
CEI EN 50525-1 pqa, CEI EN 50525-2-31 pqa, CEI UNEL 35716, CEI EN and IEC 60228 (CEI 20-29) CEI EN 60332-1-2 (CEI 20-35), CEI EN 50267-2 -1 (CEI 20-37 / 2-1) CEI EN 50575: 2014 + A1: 2016 CEI 64-8: V4
Construction Products Regulation
305/2011 EU
European directive
2014/35 / EU (B.T.) - 2011/65 / EC and 2015/863 / EU (RoHS).
Conductor
Flexible red copper conductor class 5 CEI EN IEC 60228
Insulating
Thermoplastic mixture based on polyvinylchloride of S17 quality with particular fire reaction characteristics and corresponding to the Construction Products Regulation (CPR)
Colors: black, brown, blue 5010, blue 5015, gray, red, white
yellow / green, orange, pink, purple.
Contrassegnoad Engraving
RODA CAVI -FS17-450 / 750 V IEMMEQU EFP Cca-s3-d1, a3 section,
year of manufacture
Conditions of Use
Power cables under construction and other civil engineering works with the aim of limiting the production of fire and smoke, complying with the Construction Products Regulation.
Suitable for fixed protected installations in exposed or recessed pipes or in raceways or luminaires.
Within break or command equipment for voltages up to 1,000 volts for alternating current or 750 volts for direct current. The 1 mmq section is only intended for electrical circuits for lifts and goods lifts or for wiring of electrical panels. Not suitable for outdoor installation.

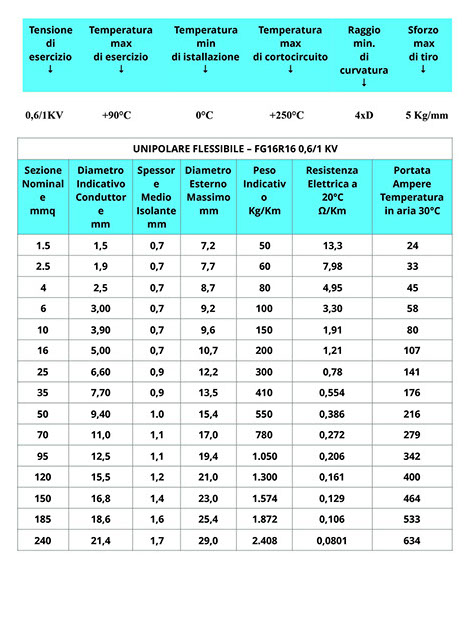

FG16R16
Nominal tension
Uo / U 0.6 / 1 KV
Norms
CEI EN 50575: 2014 + A1: 2016
EN 13501-6
EN 50399
EN 60332-1-2
EN 60754-2
CEI EN 60228
Construction Products Regulation
305/2011 EU
European directive
2014/35 / EU (B.T.) - 2011/65 / EC and 2015/863 / EU (RoHS).
Conductor
Flexible conductor of annealed red copper class 5 CEI EN IEC 60228 Vigent
Insulating
Cross-linked elastomeric compound with a high modulus based on synthetic rubber of the type HEPR (hard ethylene-propylene rubber).
Electrical insulation of conductors and cables at low and medium voltage, for fixed laying or for connections in even wet environments
Sheath
Thermoplastic compound based on polyvinylchloride of R16 quality.
Gray color ral.7035
Marking: inkjet
RODA CAVI Cca-s3, d1, a3 IEMMEQU EFP - year of manufacture, FG16R16 0.6 / 1 KV section, progressive square footage
Conditions of Use
Power cables under construction and other civil engineering works with the aim of limiting the production of fire and smoke, complying with the CPR Construction Products Regulation.
Suitable for installations in fixed installation in wet environments.
FG16OR16
Nominal tension
Uo / U 0.6 / 1 KV
Norms
CEI EN 50575: 2014 + A1: 2016
EN 13501-6
EN 50399
EN 60332-1-2
EN 60754-2
CEI EN 60228
Construction Products Regulation
305/2011 EU
European directive
2014/35 / EU (B.T.) - 2011/65 / EC and 2015/863 / EU (RoHS).
Conductor
Flexible conductor of annealed red copper class 5 CEI EN IEC 60228 Vigent
Insulating
Cross-linked elastomeric compound with a high modulus based on synthetic rubber of the type HEPR (hard ethylene-propylene rubber). Electrical insulation of conductors at low and medium voltage, for fixed laying or for connections in even wet environments. Core colors: according to CEI UNEL 00722 standard
Filler
Thermoplastic mixture in non-fibrous and non-hygroscopic material
Color: neutral / black
Sheath
Thermoplastic compound based on polyvinylchloride of R16 quality.
Gray color ral.7035
Marking: inkjet
RODA CAVI Cca-s3, d1, a3 IEMMEQU EFP - year of manufacture, FG16OR16 0.6 / 1 KV Formation x section, progressive square footage
Conditions of Use
Power cables under construction and other civil engineering works with the aim of limiting the production of fire and smoke, complying with the CPR Construction Products Regulation.
Suitable for installations in fixed laying for installations in underground installation in wet environments.
FG16OR16
Nominal tension
Uo / U 300/500 V
Norms
CEI UNEL 35720 October 2018, EN 50575, EN 50399, EN 60332-1-2, EN 60754-2,
STANDARDS: CEI 20-11 / 0-1 V 1 (EN 50363-0), CEI EN 50525-1, CEI EN 50525-2-11 (Annex A)
EN 61034-2, UNI 10501-6, CEI UNEL 35016.
Construction Products Regulation
305/2011 EU
European directive
2014/35 / EU (B.T.) - 2011/65 / EC and 2015/863 / EU (RoHS).
conductor
Flexible red annealed copper conductor class 5 CEI EN IEC 60228 Applicable
insulating
Polyvinyl chloride grade S18 insulation compound. Standard CEI 20-11 / 0-1 V1
Core colors: second standard CEI UNEL 00722
FILLER
Thermoplastic compound in non-fibrous and non-hygroscopic material
Color: neutral / black
sheath
Thermoplastic compound based on R18 quality polyvinyl chloride. Standard CEI 20-11 / 0-1 V1
Ral brown color. 8400
Marking: inkjet
RODA CAVI Cca-s3, d1, a3 - year of manufacture, FS18OR18 300/500 V Formation x section, progressive length
Conditions of Employment
Cables for temporary electric power supply under construction and other civil engineering works with the aim of limiting the production of fire, density of smoke, complying with the CPR Construction Products Regulation.
Suitable for installation in dry or wet rooms (ref. CEI 20-40)
