Power Cables
Single core general porpose flexible cables.

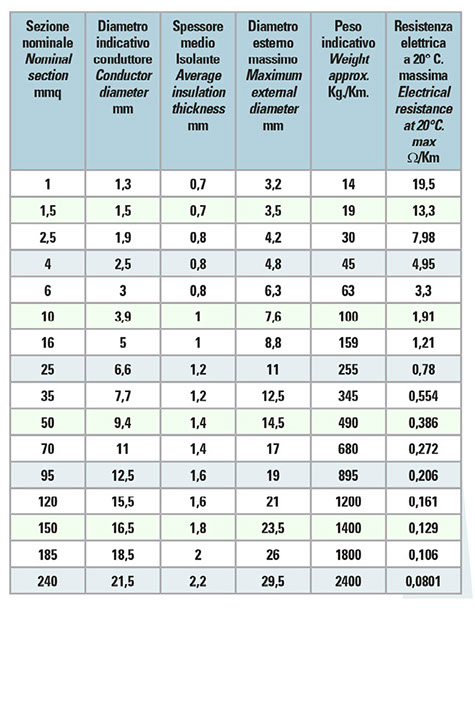

N07V-K
CEI UNEL 35752 Table
Power cable PVC insulated - flame retardant - low corrosive gas
emission.
Single core non sheathed cable with stranded conductors.
Techincal data
Rated voltage Uo/U: 450/750 V.
Test voltage: 2500 V a.c.
Maximum operating temperature: 70° C.
Maximum short circuit temperature: 160° C.
Stranded annealed copper conductor.
PVC insulation R2 Type conforming to CEI 20 - 11,
CEI 20 - 22/II and CEI 20 - 37/I Standards.
Identification
Impression marking on the cutting:
“RODA CAVI - CT - IEMMEQU CEI 20 - 22 / II”
Colours available:
From 1 to 2,5 mmq. Light blue, White, Yellow/Green, Grey, Brown, Black,
Red, Orange, Pink, Purple, Dark blue.
From 4 to 16 mmq: Light Blue, Yellow/Green, Grey, Brown, Black.
From 25 to 95 mmq: Yellow/Green, Black.
From 120 to 240 mmq: Black.
Application
System requiring flame retardant cables. Installation in pipes or conduits.
Fixed or protected istallations, appliances, distribution boards.
Installation
Minium temperature: 5° C.
Maximum pulling force: 50 N/mmq.
Minimum bending radius: 4 times the outer diameter.
Packing
100 metre coils up section 50 mmq - Wooden drums.
H05V-K
Harmonized cables - Standards CEI 20-20
(Cenelec HD 21.3.S2)
PVC insulated power cables.
Single core non sheathed cables with stranded conductors.
Technical data
Rated voltage Uo/U: 300/500 V.
Test voltage: 2000 V. a.c.
Maximum operating temperature: 70° C.
Maximum short circuit temperature: 160° C.
Stranded annealed copper conductor.
PVC insulation, TI1 type.
Colours available
Light blue, White, Yellow/Green, Grey, Brown, Black,
Red, Orange, Pink, Purple, Dark blue.
Application
Fixed or protected installations in appliances, on or inside
lighting appliances.
Installation in pipes or conduits, only for signalling or command
circuits.
Not suitable for use in high fire risk environments.
Installation
Minimum temperature: 5° C.
Maximum pulling force: 50 N/mmq
Power Cables
Single core general porpose flexible cables.
FM9
CEI UNEL 35024/1 Table
Power cable insulated nontoxic thermoplastic, low corrosive and
toxic gas emission.
Single core not sheathed cable with stranded conductors in red
copper.
Techincal data
Rated voltage Uo/U: 450/750 V.
Test voltage: 2500 V a.c.
Maximum operating temperature: 70° C.
Maximum short circuit temperature: 160° C.
Stranded annealed copper conductor.
Nontoxic thermoplastic insulation M9 type conforming to CEI
20-22 /III”, CEI 20-37, CEI 20-38 and CEI 20-35 standards.
Identification
Impression marking on the cutting:
“RODA CAVI - CT - IEMMEQU CEI 20 - 22 / III”
Colours available:
From 1 to 2,5 mmq. Light blue, White, Yellow/Green, Grey, Brown, Black,
Red, Orange, Pink, Purple, Dark blue.
From 4 to 16 mmq: Light Blue, Yellow/Green, Grey, Brown, Black.
From 25 to 95 mmq: Yellow/Green, Black.
From 120 to 240 mmq: Black.
Application
System requiring flame retardant cables to presence more people ( 64-2
CEI –standards ). Installation in pipes or conduits.
Fixed or protected istallations, appliances, distribution boards.
Installation
Minium temperature: - 5° C.
Maximum pulling force: 50 N/mmq.( not over )
Minimum bending radius: 4 times the outer diameter.
Packing
100 metre coils up section 50 mmq – From 70 to 240 mmq in wooden
drums.
Power Cables
Single core general porpose flexible cables.
H07RN-F
CEI UNEL 35364, Table
Flexible, single and multi-core power cables EPR insulated
under Polycloroprene sheathing
Technical data
Rated voltage Uo/U: 450 / 750 V.
Test voltage: 2.5 KV. c.a.
Maximum operating temperature: 60° C
Maximum short circuit temperature: 200° C
Stranded annealed copper conductor.
Core insulation:EPR rubber type polycloroprene
sheathing: EM2 type.
Coulor: Black
Identification
Ink marking on the sheath “RODA CAVI - IEMMEQU -<HAR>-
CEI 20 - 19/4-H07RNF-section – progressive measurument
Core colouring scheme
1x: Black
2x: Brown - Light blue
3x: Yellow/Green - Brown - Light blue
4x: Yellow/Green - Brown - Light blue - Black
5x: Yellow/Green - Brown - Light blue - Black - Black.
Application
Low voltage power system in industrial and civil environments.
Suitable for fixed laying both indoor, even in wet areas and outdoor.
Easily installed for connections a mechanical stress.It can be used at
yard.
Installation
Fixed laying.
Minimum temperature: - 25° C.
Maximum pulling force: 50 N/mmq
Minimum bending radius: 10 times the outer diameter max for mobile
service.
Packing
100 mt coils / Wooden drums
Power Cables
Power cables for fixed installation.
FG7-R
CEI UNEL 35375, Table CEI 20-22/II - CEI 20-37/2 - CEI
20–13 CEI 20-35 unleaded
Flexible, single and multi-core power cables EPR rubber
insulated under a PVC sheathing - flame retardant - low
corrosive gas emission.
Technical data
Rated voltage Uo/U: 0,6/1 KV.
Test voltage: 4 KV. c.a.
Maximum operating temperature: 90° C
Maximum short circuit temperature: 250° C
Stranded annealed copper conductor.
Core insulation: EPR rubber type.
PVC sheathing Rz type.
Coulor: Light grey - RAL 7035
Identification
Impression/ink marking on the sheath depending on the section
“RODA CAVI - CT - IEMMEQU - CEI 20-22/II”-FG7(O)R-section-
progressive metrature.
Core colouring scheme
1x: Black
2x: Brown - Light blue
3x: Yellow/Green - Brown - Light blue
4x: Yellow/Green - Black - Grey - Brown
5x: Yellow/Green - Black - Light blue - Brown - Grey.
Application
Low voltage power system in industrial and civil environments.
Suitable for fixed laying both indoor, even in wet areas and outdoor.
Easily installed on walls and metal supports. They can be buried directly.
Installation
Fixed laying.
Minimum temperature: 0° C.
Maximum pulling force: 50 N/mmq
Minimum bending radius: 4 times the outer diameter.
Packing
Up to 6 mmq 100 mt coils/Wooden drums 10 mmq upwards - Wooden drums.
Power Cables
Power cables for fixed installation.
FG7(O)R
CEI UNEL 35375, CEI UNEL 35377, TableCEI 20-22/II
CEI 20-37/2 – CEI 20–13 CEI 20-35 unleaded
Flexible, single and multi-core power cables EPR rubber
insulated under a PVC sheathing - flame retardant - low
corrosive gas emission.
Techincal data
Rated voltage Uo/U: 0,6/1 KV.
Test voltage: 4 KV. c.a.
Maximum operating temperature: 90° C
Maximum short circuit temperature: 250° C
Stranded annealed copper conductor.
Core insulation: EPR rubber type.
PVC sheathing Rz type.
Coulor: Light grey - RAL 7035
Identification
Impression/ink marking on the sheath depending on the
section “RODA CAVI - IEMMEQU - CEI 20-22/II”-FG70R-section-
progressive metrature.
Core colouring scheme:
1x: Black
2x: Brown - Light blue
3x: Yellow/Green - Brown - Light blue
4x: Yellow/Green - Black - Light blue - Brown
5x: Yellow/Green - Black - Light blue - Brown - Grey.
Application
Low voltage power system in industrial and civil environments.
Suitable for fixed laying both indoor, even in wet areas and outdoor.
Easily installed on walls and metal supports. They can be buried directly.
For low voltage systems and signals carriage
Installation
Fixed laying.
Minimum temperature: 0° C.
Maximum pulling force: 50 N/mmq
Minimum bending radius: 4 times the outer diameter.
Packing
Up to 6 mmq 100 mt coils/Wooden drums 10 mmq upwards - Wooden drums.
Power Cables
Power cables for fixed installation.
FG7M1
CEI UNEL 35382, Table
Flexible, single and multi-core power cables EPR rubber
insulated under a Thermoplastic sceathing of M1 type, flame
retardant, low corrosive gas emission.
Techincal data
Rated voltage Uo/U: 0,6/1 KV.
Maximum operating temperature: 90° C
Maximum short circuit temperature: 250° C
Stranded annealed copper conductor.
Core insulation: EPR rubber type.
THERMOPLASTIC sheathing M1 type.
Coulor Green.
Conformino to CEI 20-22/III. CEI 20.37, CEI 20-38 and CEI 20-35
standards
Identification
ink marking on the sheath “RODA CAVI - -IEMMEQU - CEI 20 -
22/IIi”-FG7OM1-section-progressive measurament.
Core colouring scheme:
2x: Brown - Light blue
3x: Yellow/Green - Brown - Light blue
4x: Yellow/Green - Black - Light blue - Brown
5x: Yellow/Green - Black - Light blue - Brown - Black
Application
Low voltage power system in industrial and civil environments to
presents more people. Suitable for fixed laying both indoor, even in wet
areas and outdoor. Easily installed on walls and metal supports. They can
be buried directly
Installation
Fixed laying.
Minimum temperature: -5° C.
Maximum pulling force: 50 N/mmq
Minimum bending radius: 4 times the outer diameter.
Packing
100 mt coils/Wooden drums
Power Cables
Power cables for fixed installation.
FG7(O)M1
CEI UNEL 35375, CEI UNEL 35377, TableCEI 20-22/II
CEI 20-37/2 – CEI 20–13 CEI 20-35 unleaded
Flexible, single and multi-core power cables EPR rubber
insulated under a PVC sheathing - flame retardant - low
corrosive gas emission.
Techincal data
Rated voltage Uo/U: 0,6/1 KV.
Test voltage: 4 KV. c.a.
Maximum operating temperature: 90° C
Maximum short circuit temperature: 250° C
Stranded annealed copper conductor.
Core insulation: EPR rubber type.
PVC sheathing Rz type.
Coulor: Light grey - RAL 7035
Identification
Impression/ink marking on the sheath depending on the
section “RODA CAVI - IEMMEQU - CEI 20-22/II”-FG70R-section-
progressive metrature.
Core colouring scheme:
1x: Black
2x: Brown - Light blue
3x: Yellow/Green - Brown - Light blue
4x: Yellow/Green - Black - Light blue - Brown
5x: Yellow/Green - Black - Light blue - Brown - Grey.
Application
Low voltage power system in industrial and civil environments.
Suitable for fixed laying both indoor, even in wet areas and outdoor.
Easily installed on walls and metal supports. They can be buried directly.
For low voltage systems and signals carriage
Installation
Fixed laying.
Minimum temperature: 0° C.
Maximum pulling force: 50 N/mmq
Minimum bending radius: 4 times the outer diameter.
Packing
Up to 6 mmq 100 mt coils/Wooden drums 10 mmq upwards - Wooden drums.
Power Cables
Power cables for fixed installation.
FROR 450/750-V
CEI 20 - 22 II Standard CEI 20 - 37 Part. 1
Flexible, multi-core power cables, PVC insulated and PVC
sheathed - flame retardant - low corrosive gas emission.
Technical data
Rated voltage Uo/U: 450/750 V.
Test voltage: 2500 V. c.a.
Maximum operating temperature:
60° C. for mobile service
70° C. for fixed installation
Maximum short circuit temperature:
150° C. for mobile service
160° C. for fixed installation
Stranded annealed copper conductor.
PVC core insulation TI2 type.
PVC sheath conforming to TM1 and TM2 quality requirements.
Colour - Grey - RAL 7035
Identification
IImpression marking on the insulation:
“RODA CAVI - IEMMEQU - CEI 20-22/II”-FROR-section-
progressivemeausurument
Core colouring scheme
2x: Brown - Light blue
3x: Yellow/Green - Brown - Light blue
4x: Yellow/Green - Brown - Light blue - Black
5x: Yellow/Green - Black - Brown - Light blue - Black
Application
Suitable for both fixed installations and mobile systems.
Indoor installations, even in humid areas and outdoor for temporary use.
Recommended for the installation of lighting system in areas for public
use and entertainment.
Installation
Minimum temperature: 5° C.
Maximum pulling force: 10 N/mmq in mobile and 50 N/mmq for fixed
installations. Minimum bending radius: 10 times the outer diameter for
mobile service, 4 times the outer diameter for fixed installation.
Packing
100 metre coils - Wooden drums.
Power Cables
Power cables for mobile service.
FROR 300/500-V
CEI 20-22/II,CEI 20-20/1,CEI 20-20/2 CEI 20-37/2,CEI
20-35 Standard
Flexible, multi-core cables for fixed and mobile installation, PVC
insulated under a thin PVC
Layer sheathed flame retardant - low corrosive gas emission.
Techincal data
Rated voltage Uo/U: 300/500 V.
Maximum operating temperature:
60° C. for mobile service
70° C. for fixed installation
Maximum short circuit temperature:
150° C. for mobile service
160° C. for fixed installation
Stranded annealed copper conductor.
PVC core insulation TI2 type.
PVC sheath conforming to TM1 and TM2 quality requirements.
Identification
Impression marking on the sheath:
“RODA CAVI - IEMMEQU - CEI 20-22/II”-FROR300/500 V-section-
progressive meausurument
Colours available:
Grey - RAL 7035
Application
Suitable for both fixed installations and mobile service.For systems
that use flame ritardand cables accordino to CEI standards. Indoor
installations, even in humid areas and outdoor for temporary use.
Recommended for the installation of lighting system in areas for public
use and entertainment.
Installation
Minimum temperature: 0° C.
Maximum pulling force: 1,5 kg/mmq in mobile service and 5 kg/mmq for
fixed installations.
Minimum bending radius: 10 times the outer diameter for mobile service,
4 times the outer diameter for fixed installation.
Packing
100 metre coils - Wooden drums.
Signalling Cables Control and Signalling Cables
Signalling cables for mobile service.

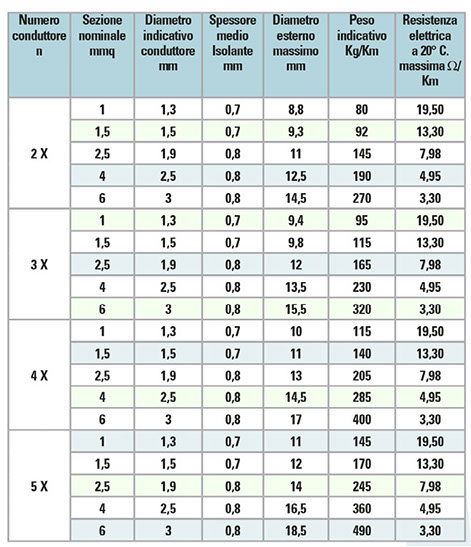

H03VV-F
H05VV-F
Harmonized cables - Standard
CEI 20 - 20 (Cenelec HD 21.5.S3)
Flexible PVC insulated, PVC sheathed cables.
Technical data
Rated voltage Uo/U: 300/500 V.
Test voltage: 2000 V. in c.a.
Maximum operating temperature: 70° C.
Maximum short circuit temperature: 150° C.
Stranded annealed copper conductor.
PVC core insulation TI2 type
PVC Sheating TM2 type. Black / RAL 9005 - Whithe /
RAL 9010
Core colouring scheme
2x: Brown - Light blue
3x: Yellow/Green - Brown - Light blue
Application
Average mechanical stresses, domestic appliances
also in wet environments, for cooking and heating appliances as
long as the cables does not come into contact with hot parts and
is not subyect radiations. Not suitable for use outdoor, in industry
or agriculture and for powering non-domestic portable tools.
Installation
Minimum temperature: 5° C.
Maximum pulling force: 1,5 N./mmq
Minimum bending radius: 10 times the outer diameter.
Note
For actual conditions of use and laying refer to CEI 20 - 40
Standards.
Sheathing: Black/White
Packing
100 metre coils - Wooden drums.
Power Cables
Flexible multi-core signalling cables.
FFROR
Armonized cables standard CEI UNEL 00722 e 00725,
VDE 0293
PVC insulated flexible cable PVC flexible sheathed.
Techincal data
Flexible bare copper class 6 conformity with CEI 20 - 29,
IEC 228 e VDE 0295.
Insulation PVC compound type TI2. conformity CEI 20-22.
Stranded leades grouped in concentric layers.
Sheath PVC compound type TM2 conformity CEI 20 - 20.
Colours available:
Orange.
Application
Extra-flexible cable for portable equipment, extensions cable for
tools, household, appliances, electrical machinery for DIY and
gardening.
Packing
100 metre coils - Wooden drums
Power Cables
Extra-flexible cable for mobile applications.
A03VVH2-F
National cable class 5 IEC 228
PVC insulated flexible cables PVC flexible sheathed.
Technical data
Flexible bare copper class 6 conformity CEI 20 - 29.
Insolution PVC compound type TI2 conformity
CEI 20 - 20.
Sheath PVC compound type TM2 conformity
CEI 20 - 20.
Rated voltage Uo/U 300/300 V.
Coloure sheath: Whithe, Black, Grey.
Application
Suitable for apparatius with connections subjected to
medium mechanical solecitations, offices little household
appliances.
Packing
100 metre coils.
Power Cables
Electric cable under a light sheating.
FROR FRX
NORMA CEI 20 - 22 II - NORMA CEI 20 - 37 Part. I
Cavi per impianti di controllo, segnalazioni, comando e misura.
Le caratteristiche di dimensione lo rendono adatto per citofonia,
elettronica e sistemi informatici.
Dati Tecnici
Tensione nominale Uo/U 300/300 V.
Tensione di prova: 1000 V. c.a.
Temperatura massima di esercizio: 60° per servizio mobile.
Conduttore rame rosso flessibile classe 5 conforme
CEI-IEC.
Isolamento in mescola di PVC conforme a CEI e IEC.
Guaina in mescola di PVC conforme a CEI e IEC.
Colore Grigio RAL 7035.
Identificazione
Stampigliatura sulla guaina ad impressione “RODA CAVI - CT -
FROR FRX 300/300 V.”
Colore anime
Bianco, Rosso, Nero, Verde, Giallo , Marrone, Grigio,
Rosa, Arancione, Blu, Viola, Verde chiaro, Giallo chiaro,
Marrone chiaro.
Posa
Fissa.
Sforzo massimo di tipo 1,5 kg/mmq. di sezione totale del rame.
Raggio minimo di curvatura, diametro esterno per 10.
Confezione
Matasse da 100 metri / Bobine in legno.
Control and Signal Cables
Signalling and control multiconductor cable flame retardant.

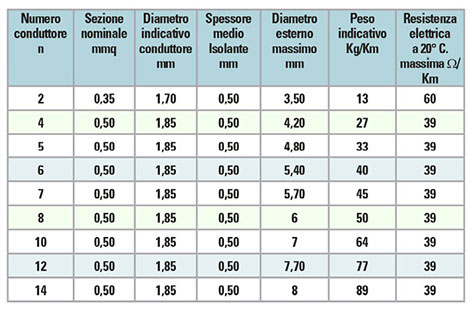

URX-R
STANDARDS CEI 20 - 20.
Cables for interconnection of telephone apparatius,
trasmitting and permutation in telephone central.
Technical data
Test voltage: 300 V. c.a.
Operating temperature - 10 C. to + 80° C.
Stranded rigid red copper conductor class 5 conformity
to CEI e IEC.
PVC insulation conformity to CEI 20 - 20.
PVC sheath conformity to CEI 20 - 20.
Colour-grey RAL 7035.
Core colouring scheme
White, Red, Black, Green, Yellow, Brown, Grey, Pink, Orange,
Blue, Light green, Light yellow, Light brown, Light pink, Turquoise,
Light red.
Installation
Fixed laying.
Maximum pulling force: 50 N/mmq.
Minimum bending radius: 15 times the outer diameter.
Packing
100 metre coils - Wooden drums
Telephones Cables
Telephone cables internal systems.

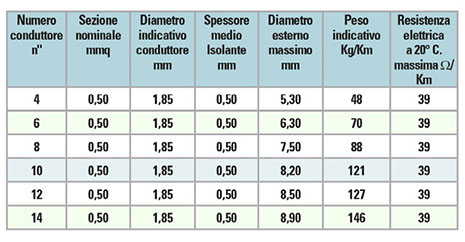

FRX
STANDARDS CEI 20 - 20.
Cables for connection in plant for signalling, controll, order and
measure if there aren’t problem of interference of electro-
magnetic wave from outdoor environment.
Techincal data
Test voltage: 250/250 V. c.a.
Operating temperature - 10° C. to + 80° C.
Flexible red copper conductor class 5 conformity CEI - IEC.
PVC insulation.
Core colouring scheme:
White, Red, Black, Green, Yellow, Brown, Grey, Pink, Orange,
Blue, Purple, Light green, Light yellow, Light brown.
Installation
Fixed laying. Maximum pulling force type: 50 N mmq.
Minimum bending radius: 10 times the outer diameter.
Packing
100 metre coils - Wooden drums.
Signal Cables
Intercom flexible cable not sheathed.
TRASMISSION CABLES HI-FI
Armonized cables
PVC flexible cables PVC flexible sheathed.
Technical data
Flexible bare copper class 5 conformity CEI 20 - 29.
Tinned copper transparent flat cables.
Insulation PVC compound type TI1.
Bicolor (Red-Black) insulation.
Application
In the Hi-Fi field for the loud speaker connection.
Packing
100 metre coils.
Technical office is available to realize flat on detailed request
of customer.
Colour: White, Black, Brown, Gold, Transparent yellow, Silver
Trasmission Cable
Trasmission cable.

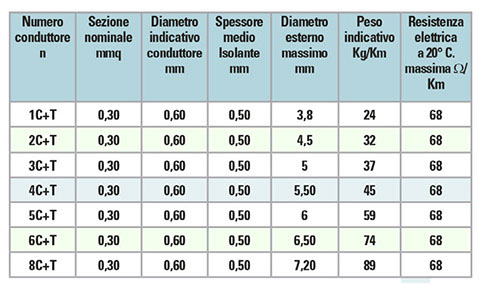

ANTITHEFT CABLES
NORME CEI 20 - 22 II.
Cables for plant in domestic dwelling if they same
aren’t with conductors of different type and use that con
to cause interference and for industrial plant if request security
and advanced technology.
Techincal data
Operating temperature 10° C. to + 80° C.
Flexible indoor red copper conductor.
PVC insulation of the indoor conductors.
Mylar anti-migranting tape spiral wrapped.
Continuity cable in bare copper.
Sheilding with tape AL / Pes spiral wrapped.
External sheath PVC coloure whithe RAL 9010 antiflame CEI 20
- 22 II.
Colours available:
Accarding regulations DIN 47100
Installation
Minimum bending radius: 10 times the outer diameter.
Packing
100 metre coils.
ANTITHEFT CABLES
control and Signal cables.

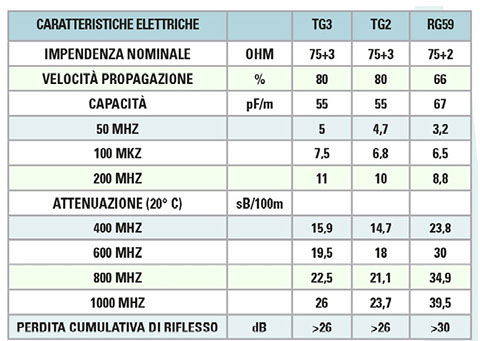

COAXIAL CABLE
LThe range of coaxial cables RODA CAVI is suitable
when the installation requises a small external diameter and
particular flexibility because there is plasticity of the extruded
foam.
Low levels of attenuation the range cables is suitable for
where the TV signal have a low intensity, for indoor plant, for
derivations and extensions.
COAXIAL CABLE
Tv downlead cables.

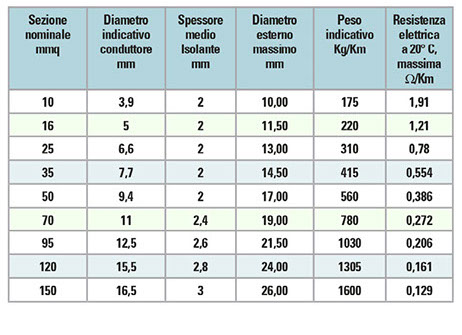

H01N2 - D
CEI UNEL 20-19 / 6 Table IEMMEQU <HAR>
Cable suitable for mobile connections between welding
equipment and electrodes or ground clamps.
Techincal data
Rated voltage Uo/U: 100/100 V.
Test voltage: 1 KV a.c.
Maximum operating temperature: + 60° C.
Minimum operating temperature: -15° C
Stranded annealed copper conductor.
insulation:Type EM 5 special chorinated elastomer.This
insulation is CEI 20-19/6 standards.
Identification
Ink marking on the insulation:
“RODA CAVI <HAR>IEMMEQU CEI 20-19 / 6- H01N2-D +
SECTION + PROGRESSIVE METRATURE
Colours available:
Black.
Application
This cable, thanks to high qualità of materials used and the carefull
manufacturing, can be used in high duty conditions like those found in
mechanical industries and shipyards. The cable has a very good resistance to
machanical stresses to abrasion, shocks, tearing and squashing.It stand very
well to chamical degradation to the axposure to U.V. and infrared rays.Can be
used in wet premises, in presence of oils and hydrocarbon’s vapour.
Installation
Maximum pulling force: 50 N/mmq.
Minimum bending radius: 4 times the outer diameter.
Packing
100 metre coils up section 50 mmq - Wooden drums.
Weld Cables
Welding Cables..

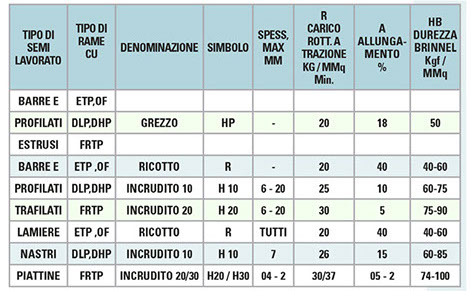

WELD CABLES BLES
NORMATIVA UNI EN 1977 : 2000 – ASTM E 49.92
NORMATIVA UNI 3310 – 72
STATO DI FORNITURA:
- ETP
- CRUDO
- RICOTTO
- ROSSO / STAGNATO
CONFEZIONE:
- MATASSE
- BOBINE
APPLICAZIONE:
- LINEE AEREE
- IMPIANTI TERRA

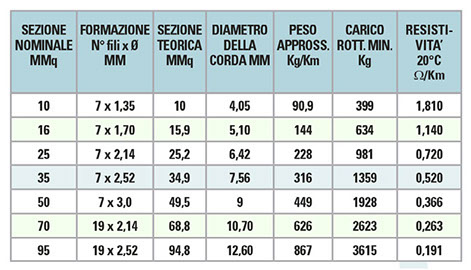

PIATTO DI RAME
NORMATIVA UNI 3310 – 72
FS-17
Rated voltage
Uo / U 450/750 Volt
Norms
CEI EN 50525-1 pqa, CEI EN 50525-2-31 pqa, CEI UNEL 35716, CEI EN and IEC 60228 (CEI 20-29) CEI EN 60332-1-2 (CEI 20-35), CEI EN 50267-2 -1 (CEI 20-37 / 2-1) CEI EN 50575: 2014 + A1: 2016 CEI 64-8: V4
Construction Products Regulation
305/2011 EU
European directive
2014/35 / EU (B.T.) - 2011/65 / EC and 2015/863 / EU (RoHS).
Conductor
Flexible red annealed copper conductor class 5 CEI EN IEC 60228
Insulating
Thermoplastic compound based on polyvinyl chloride of quality S17 with particular characteristics of reaction to fire and corresponding to the Construction Products Regulation (CPR)
Colors: black, brown, blue 5010, blue 5015, gray, red, white
yellow / green, orange, pink, purple.
Mark on Engraving
RODA CABLES –FS17-450 / 750 V IEMMEQU EFP Cca-s3-d1, a3 section,
year of manufacture
Conditions of Employment
Power supply cables under construction and other civil engineering works with the aim of limiting the production of fire and smoke, complying with the Construction Products Regulation.
Suitable for fixed protected installations in exposed or embedded pipes or within channels or lighting devices.
Within interruption or control equipment for voltages up to 1,000 volts for alternating current or 750 volts for direct current. The 1 sq. Mm section is only intended for electrical circuits for lifts and hoists or for wiring electrical panels. Not suitable for outdoor installation.

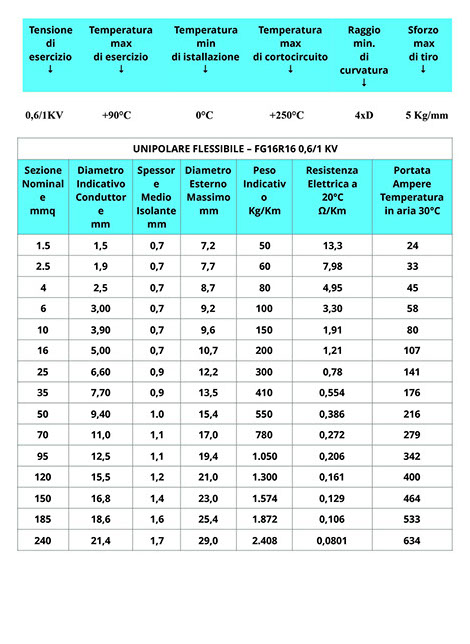

FG16R16
Nominal tension
Uo / U 0.6 / 1 KV
Norms
CEI EN 50575: 2014 + A1: 2016
EN 13501-6
EN 50399
EN 60332-1-2
EN 60754-2
CEI EN 60228
Construction Products Regulation
305/2011 EU
European directive
2014/35 / EU (B.T.) - 2011/65 / EC and 2015/863 / EU (RoHS).
Conductor
Flexible red annealed copper conductor class 5 CEI EN IEC 60228 Applicable
Insulating
High modulus cross-linked elastomeric compound based on HEPR (hard ethylene-propylene rubber) synthetic rubber.
Electrical insulation of conductors and cables at low and medium voltage, for fixed installation or for connections in even wet environments
Sheath
Thermoplastic compound based on R16 grade polyvinyl chloride.
Gray color ral.7035
Marking: inkjet
RODA CAVI Cca-s3, d1, a3 IEMMEQU EFP - year of manufacture, FG16R16 0.6 / 1 KV section, progressive length
Conditions of Employment
Power supply cables under construction and other civil engineering works with the aim of limiting the production of fire and smoke, complying with the CPR Construction Products Regulation.
Suitable for fixed installation even in wet environments.

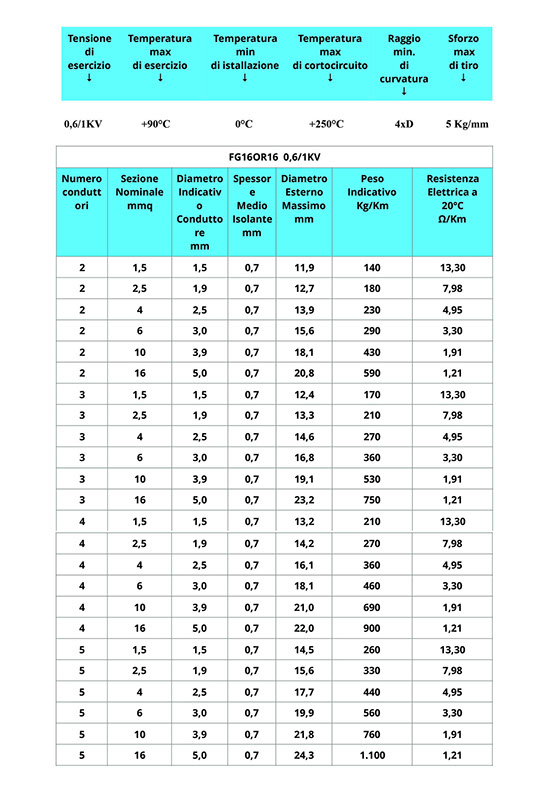

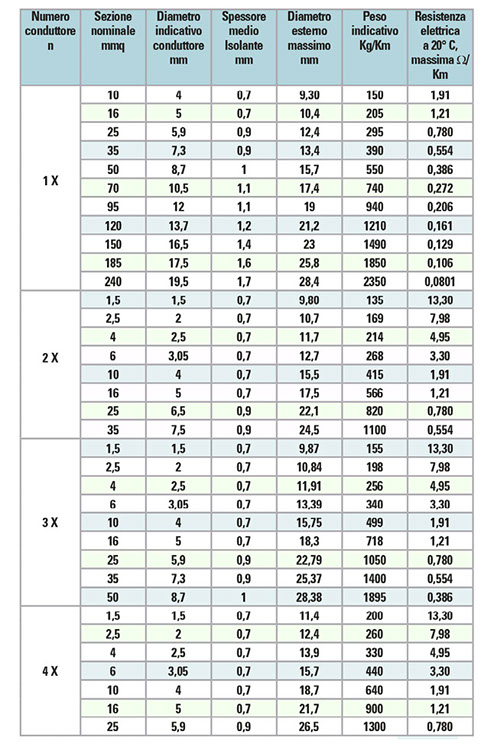

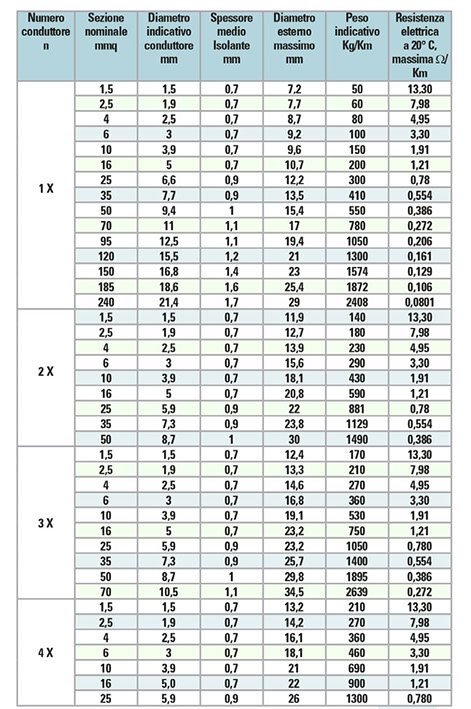

FG16OR16
Nominal tension
Uo / U 0.6 / 1 KV
Norms
CEI EN 50575: 2014 + A1: 2016
EN 13501-6
EN 50399
EN 60332-1-2
EN 60754-2
CEI EN 60228
Construction Products Regulation
305/2011 EU
European directive
2014/35 / EU (B.T.) - 2011/65 / EC and 2015/863 / EU (RoHS).
Conductor
Flexible red annealed copper conductor class 5 CEI EN IEC 60228 Applicable
Insulating
High modulus cross-linked elastomeric compound based on HEPR (hard ethylene-propylene rubber) synthetic rubber. Electrical insulation of low and medium voltage conductors, for fixed installation or for connections in even wet environments. Core colors: according to CEI UNEL 00722 standard
Filler
Thermoplastic compound in non-fibrous and non-hygroscopic material
Color: neutral / black
Sheath
Thermoplastic compound based on R16 grade polyvinyl chloride.
Gray color ral.7035
Marking: inkjet
RODA CAVI Cca-s3, d1, a3 IEMMEQU EFP - year of manufacture, FG16OR16 0.6 / 1 KV Formation x section, progressive length
Conditions of Employment
Power supply cables under construction and other civil engineering works with the aim of limiting the production of fire and smoke, complying with the CPR Construction Products Regulation.
Suitable for fixed installation for underground installation installations even in wet environments.
FS18OR18
Nominal tension
Uo / U 300/500 V
Norms
CEI UNEL 35720 October 2018, EN 50575, EN 50399, EN 60332-1-2, EN 60754-2,
STANDARDS: CEI 20-11 / 0-1 V 1 (EN 50363-0), CEI EN 50525-1, CEI EN 50525-2-11 (Annex A)
EN 61034-2, UNI 10501-6, CEI UNEL 35016.
Construction Products Regulation
305/2011 EU
European directive
2014/35 / EU (B.T.) - 2011/65 / EC and 2015/863 / EU (RoHS).
conductor
Flexible red annealed copper conductor class 5 CEI EN IEC 60228 Applicable
insulating
Polyvinyl chloride grade S18 insulation compound. Standard CEI 20-11 / 0-1 V1
Core colors: second standard CEI UNEL 00722
FILLER
Thermoplastic compound in non-fibrous and non-hygroscopic material
Color: neutral / black
sheath
Thermoplastic compound based on R18 quality polyvinyl chloride. Standard CEI 20-11 / 0-1 V1
Ral brown color. 8400
Marking: inkjet
RODA CAVI Cca-s3, d1, a3 - year of manufacture, FS18OR18 300/500 V Formation x section, progressive length
Conditions of Employment
Cables for temporary electric power supply under construction and other civil engineering works with the aim of limiting the production of fire, density of smoke, complying with the CPR Construction Products Regulation.
Suitable for installation in dry or wet rooms (ref. CEI 20-40)
Cable CPR
